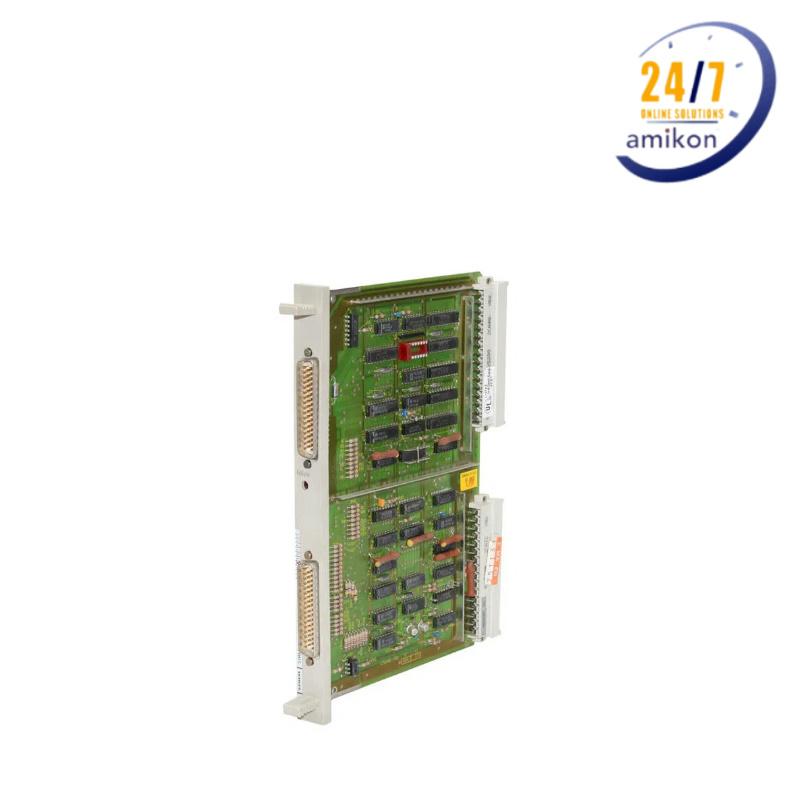

6ES5301-5CA12| SIEMENS IM301 Interface Module

l Welcome to inquiry

Manager May

E-mail: sales5@amikon.cn

Phone: +86-18106909650 (whatsapp/skype)

WeChat id: dcsfcs

l More information about the product

l Choosiong Amikon is a good choice

l Siemens 6ES5301-5CA12 technical information

1. Module Type: Digital input module

2. Input Type: 8 digital inputs (24V DC)

3. Connection: The module connects to the S5-115U or S5-115H programmable logic controllers (PLCs) using the front connector of the PLC rack.

4. Input Voltage: 24V DC nominal voltage for digital inputs.

5. Isolation: Optically isolated inputs to ensure electrical noise immunity and protect the PLC from voltage spikes and transients.

6. Module LED Indicators: Typically includes LEDs to indicate the status of each input channel (e.g., on/off).

7. Compatibility: Designed to work with Siemens SIMATIC S5 PLC systems, specifically the S5-115U and S5-115H models.

8. Mounting: It is designed for DIN rail mounting within a control cabinet or enclosure, typical in industrial environments.

9. Typical Specifications:

l Power Supply: 24V DC (nominal)

l Input Current: Each input channel typically supports up to a specified current rating, often in the range of milliamps.

l Response Time: The module provides fast response times typical for digital input modules, ensuring quick detection and processing of input signals.

l Environmental Conditions: Designed to operate within industrial temperature ranges and to withstand typical industrial electrical noise and vibrations.

10. Application:

The 6ES5301-5CA12 module is used primarily to interface various digital sensors, switches, and other digital devices with the Siemens S5 PLCs. It allows the PLC to monitor the state of digital signals from the field devices and execute control logic based on these inputs.
