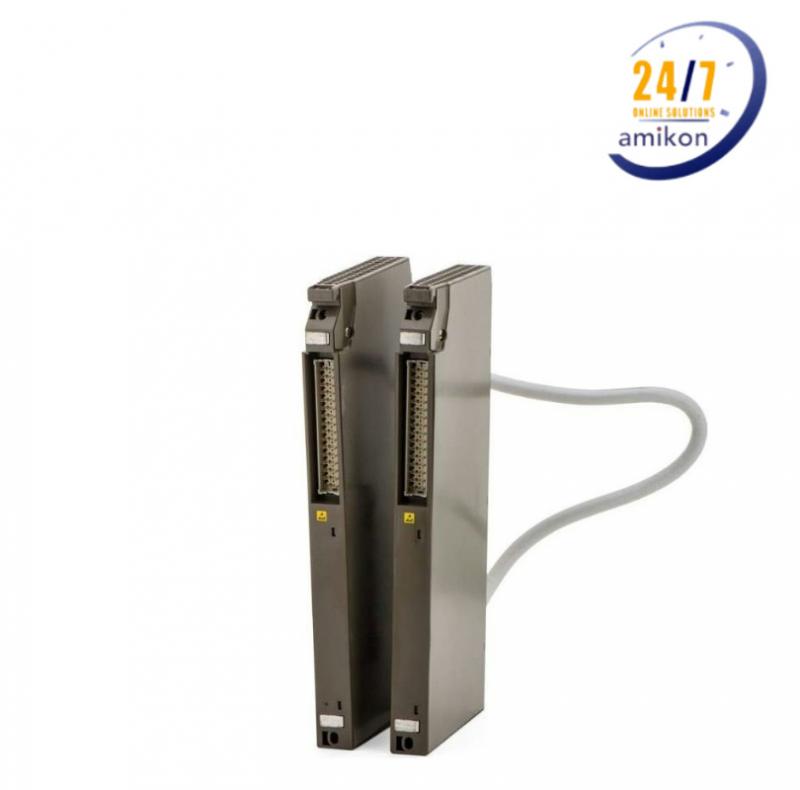

6ES5305-7LB11| SIEMENS IM305 Interface Module

Contact : Sales Manager : May

Email below : sales5@amikon.cn

Skype: +86 18106909650

Whatsapp : +86 18106909650

u Amikon is your best partner

Our company directly purchases goods from abroad. We can provide equipment and spare parts from different countries and manufacturers, solve your troubles in many places or worry about quality problems, and has great price advantage. Welcome to call us to get more product detail information.

u Our advantages

u More information for SIEMENS 6ES5305-7LB11

1. Digital Inputs

· Number of Inputs: 16 or 32 (depending on the specific module configuration).

· Input Voltage Range: Typically 24V DC.

· Input Signal Type: Binary (ON/OFF). The module can handle various types of digital input signals.

· Input Response Time: Generally specified in milliseconds; detailed response times are found in the datasheet.

2. Digital Outputs

· Number of Outputs: 16 or 32 (depending on configuration).

· Output Voltage Range: Typically 24V DC.

· Output Type: Can be transistor-based (sourcing or sinking) or relay-based, depending on the specific configuration.

· Output Current: Usually up to 0.5A per output channel; verify exact current ratings from the datasheet.

· Response Time: Generally in milliseconds; specific response times are detailed in the datasheet.

3. Electrical Characteristics

· Power Supply: Powered through the backplane bus of the S5 rack system.

· Power Consumption: Details on power consumption are provided in the module’s datasheet.

4. Environmental Conditions

· Operating Temperature Range: Typically from 0°C to 60°C (32°F to 140°F).

· Storage Temperature Range: Typically from -20°C to +70°C (-4°F to 158°F).

· Protection Class: Usually IP20, which means the module is protected against solid objects larger than 12 mm but not against liquids.

5. Connections

· Wiring: Connections are made via terminal blocks or connectors on the module. The wiring configuration is detailed in the module’s installation guide.

· Mounting: Designed to be mounted in the Siemens S5 rack system, which provides slots for various I/O and CPU modules.
