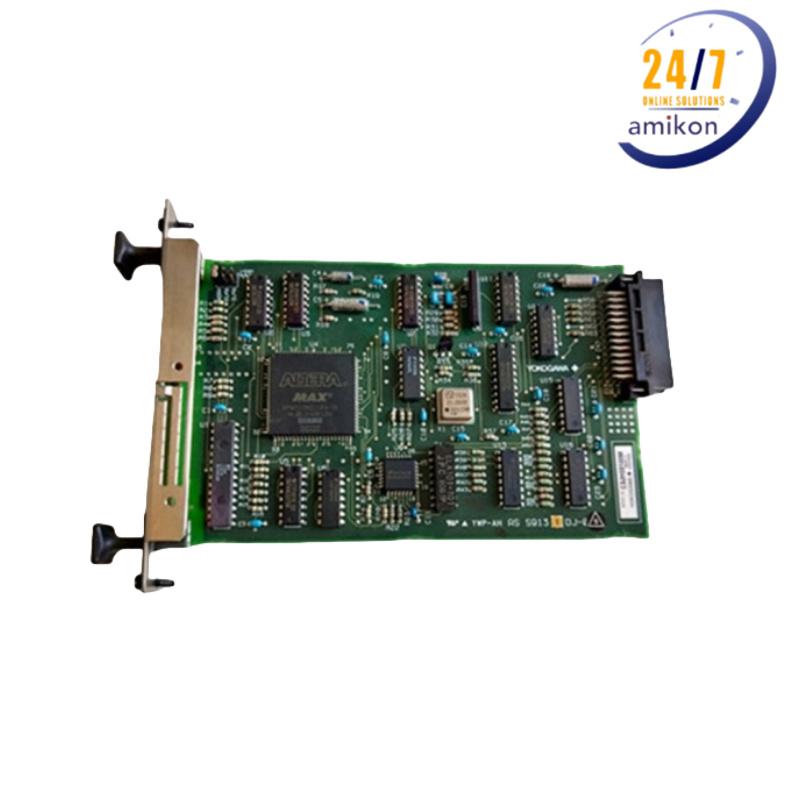

MRI-234*B | YOKOGAWA | DCS Board

More Information

Functional Specifications

Type: Analog Input/Output Module (depending on specific model within the MRI-234*B series)

Channels: Typically 4 or 8 channels per module

Input/Output Types:

Analog Input: Supports signals such as 4-20 mA, 0-10 V, thermocouples (T/C), RTDs

Analog Output: 4-20 mA, 0-10 V

Digital I/O: May be included in some variants for discrete signal handling

Resolution: 16-bit

Accuracy: ±0.1% of full scale

Input Impedance:

Voltage Inputs: Typically > 1MΩ

Current Inputs: Typically 250Ω

Isolation: 1500V AC between input channels and system

Sampling Rate: Up to 10 samples per second per channel

Power Consumption: Approximately 5-10W per module

Diagnostics: Built-in diagnostics for fault detection and system status monitoring

Application Areas

Manufacturing: Monitoring and controlling analog signals in production processes.

Oil and Gas: Measurement and control of process variables such as temperature and pressure in extraction and processing.

Power Generation: Data acquisition and control in power plants.

Water Treatment: Monitoring of water quality parameters including pH, turbidity, and conductivity.

Chemical Processing: Measurement and control of chemical processes and conditions.

Pharmaceuticals: Accurate monitoring and control of process variables and environmental conditions.

Product Features

High Precision: Provides accurate measurements with 16-bit resolution and ±0.1% accuracy.

Versatile Input/Output Options: Supports various analog and digital signals.

Robust Isolation: Ensures safety with 1500V AC isolation between channels and the system.

Advanced Diagnostics: Includes self-diagnostics for fault detection and system monitoring.

Wide Application Range: Suitable for diverse industrial processes and environments.
